Lesson 15 - Unveiling the Secrets of Night Vision: How Image Intensification Works

When it comes to exploring the unseen, there's nothing quite as captivating as the world of night vision technology. Whether you're a nature enthusiast, a security professional, or an avid hunter, the ability to see clearly in low-light conditions can be a game-changer. At Armasight, we're dedicated to bringing you the latest advancements in thermal and night vision solutions. Let’s dive into the fascinating realm of image intensification, a cornerstone of night vision technology.

Image Intensification Unveiled: Image Intensification Operating Principal

Night vision technology relies on the concept of image intensification, a process that magically transforms darkness into vivid clarity. Imagine being able to see in the dark as if it were daytime. That's precisely what image intensification does, and here's how it works in simple terms.

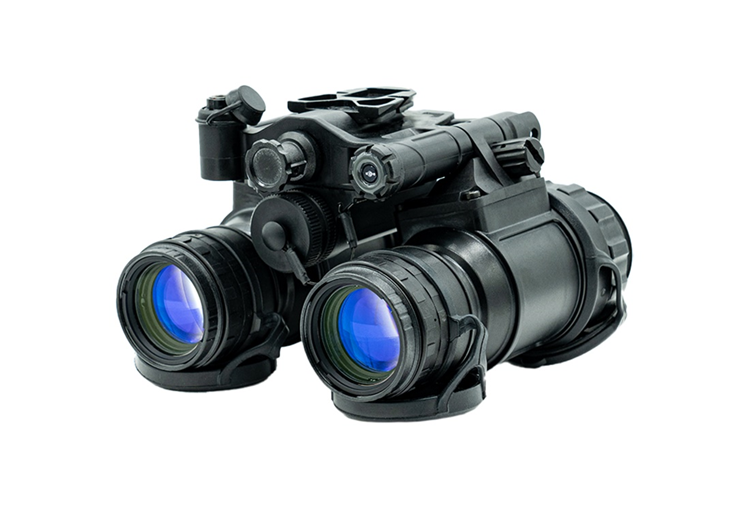

Photo: Armasight PVS 31 Night Vision Goggles

The Journey of Photons

1. Objective Lens: It all begins with the objective lens, which collects faint ambient light, like starlight or moonlight, and focuses it.

2. Photocathode: The collected photons then pass through a photocathode, a special surface that converts them into electrons. This is where the magic begins.

3. Vacuum Tube: These newly minted electrons travel through a vacuum tube, an environment devoid of air, where they can move freely without interference.

Electron Amplification

4. Microchannel Plate (MCP): Inside the vacuum tube, the electrons encounter the MCP, a thin disc studded with millions of tiny channels. As the electrons pass through these channels and collide with the channel walls, they trigger the release of thousands more electrons.

5. Electron Avalanche: This cascade effect leads to a massive amplification of electrons, to the tune of several thousand times more than what initially entered the system.

The Bright Transformation

6. Phosphor Screen: Now comes the grand finale. The amplified electrons strike a phosphor screen. Here's the kicker: the energy from these electrons is transformed back into light, and not just any light – it's thousands of times brighter than the original ambient light.

7. Mirroring Reality: The phosphor screen emits this intensified light in the same pattern as the light initially collected by the objective lens. This means that the image you see through the night vision device corresponds precisely to the scene outside, but now it's vastly brighter, allowing you to see in the dark.

Powering the Magic

To ensure this intricate process operates smoothly, a sophisticated miniaturized power supply is used to provide the necessary voltages to the various elements within the vacuum tube. The components within the vacuum tube are positioned close together to prevent electron scatter, ensuring that the transformation from ambient light to an intensified image remains precise and clear.

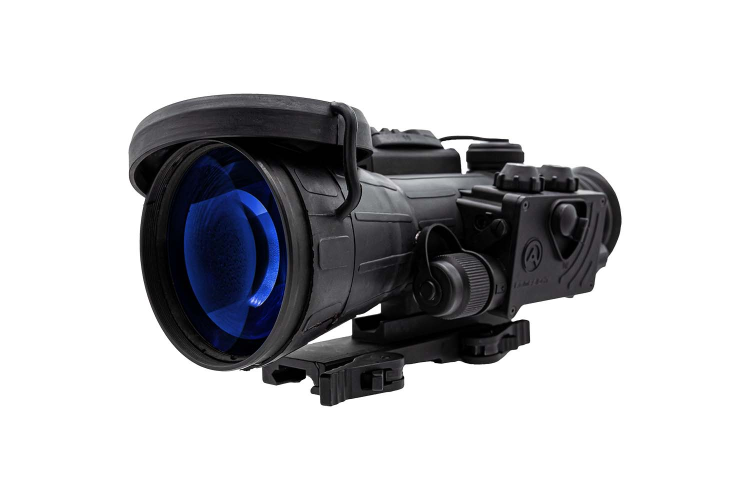

Photo: Armasight Vulcan Night Vision Scope

The Generations of Image Intensification

Now that you understand the core principles of image intensification, let's explore the generations of this technology. The U.S. Army's Night Vision and Electronic Sensors Directorate (NVESD) has categorized image intensifiers into four generations, primarily based on the sophistication of their components. These generations are Gen 0, Gen 1, Gen 2, and Gen 3.

Some manufacturers have taken it a step further with designations like Generation 2 plus (Gen 2+), Generation 3 plus (Gen 3+), and even Generation 4 (Gen 4), although these classifications are not part of the official NVESD categorization and are often used for marketing purposes.

In conclusion, image intensification is the backbone of night vision technology, allowing us to peer into the darkest of nights with crystal-clear vision. From the collection of photons to the electrifying amplification of electrons and the final transformation into a brilliantly illuminated image, it's a marvel of engineering that continues to evolve.

Stay tuned for more insights into the world of thermal and night vision technology from Armasight, where we're committed to shedding light on the unseen.
